Dust Control Filter Tubes

filters tubes ends
Specifications

Solimar Dust Filter Tubes eliminate product dust by using unique filtering media of engineered porous polymer.

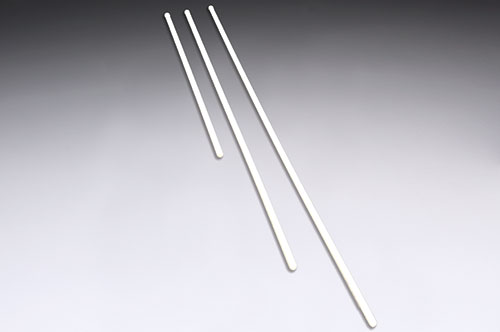

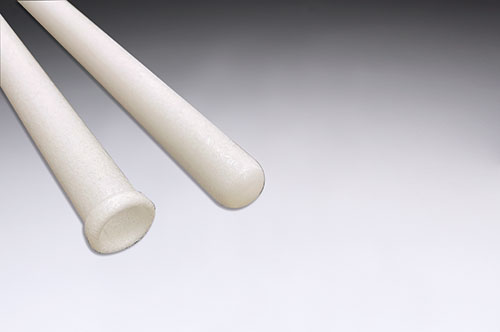

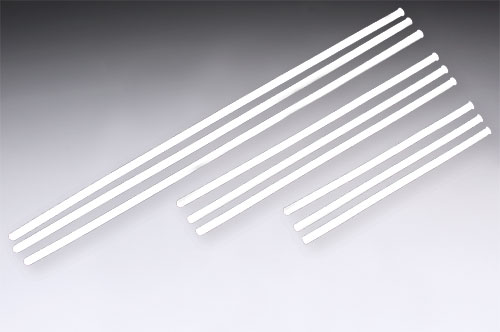

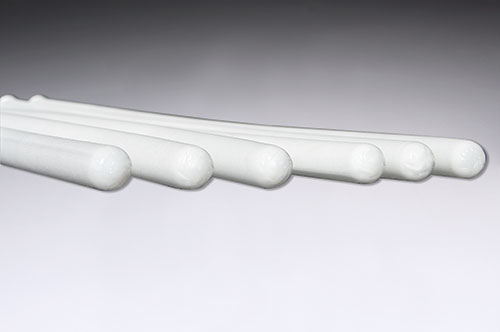

24″, 36″ and 42″ standard lengths or custom sizes available. Molded ends minimize splits, significantly improving tube life. Using multiple tubes provides a large filtering surface in a compact space.

Unique Filter Media Significantly Reduces Dust

Swing Away Bottoms offer the best in versatility for customers looking for multipurpose use of their bulk trailer. Swing Away Bottoms permit pneumatic or gravity discharge, allow for easy clean out and washing and can be used for two-way hauling of different products.

Solimar Dust Filter Tubes eliminate product dust by using unique filtering media of engineered porous polymer. 24” and 36” Standard Lengths Custom sizes available Molded Ends minimize splits, significantly improving tube life. Using multiple tubes with up to ½ ft² of filter area, each, provides a large filtering surface in a compact space.

Air Flow > 8 seconds min. to 22 seconds max. to pass 300cc/Air, 5 oz. Cylinder, through .750” disc. (pxt Q.A.: 29)

Temp Rating > min -40° F to max 180° F — continuous 266° F softening occurs.

Pore Size Range > 60-100 microns initially but due to crystalline like structure particles down to 25 microns are retained.

USDA food service approved. Non absorptive polymer can be washed in any solvent.

Trailer Parts Catalog Flip Book Catalog

Questions about our Solimar Dust Control Filter Tubes?

Please use our free and convenient Application Questionnaire to determine if we can solve your material flow problem. Feel free to call a Solimar Pneumatics representative to answer any of your questions at 1-800-233-7109. Our team of qualified, professional advisors are here for you to help you through the entire process – Concept to Completion.
