Dust Filter Assembly (Internal & External)

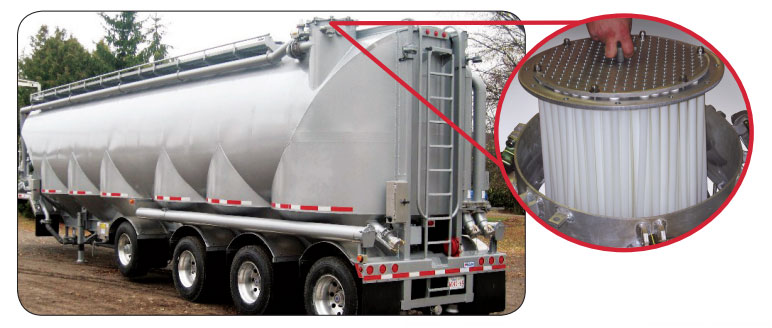

Solimar Internal Mount Filter
Internal Specifications

Unique Filter Media Significantly Reduces Dust – Internal & External Options.

Significantly reduces dust using unique filtering media of porous polymer tubes providing up to 183 square feet of filter area depending on the model.

Large filter, small space – Easy inspection – 400 to 900 SCFM – Longer Life.

Internal Mount Filter For Self Loading Trailers

Large Filter Area in a Small Space Easy Inspection 80 ft² to 183 ft² of Surface Area 400 to 900 SCFM.

Longer Life

Internal Filter System significantly reduces dust using unique filtering media of porous polymer tubes.

Using multiple tubes, each with up to ½ ft² of filter area, the Solimar Internal Filter System can provide 80 ft² to 183 ft² of filter area depending on the Filter model.

The porous tubes are fitted in an aluminum tube plate, and held in place by an aluminum retaining plate. The tubes can be individually removed for inspection or replacement.

Solimar External Mount Filter

External Mount Filter For Self Loading Trailers

Large Filter Area in a Small Space Easy Inspection 120 ft² or 183 ft² of Surface Area 600 or 900 SCFM

Longer Life

External Filter System significantly reduces dust using unique filtering media of porous polymer tubes.

Using multiple 36” tubes, each with ½ ft²of filter area, the Solimar External Filter System can provide 120 ft to 183 ft of filter area depending on the Filter model.

The porous tubes are fitted in an aluminum tube plate, and held in place by an aluminum retaining plate. The tubes can be individually removed for inspection or replacement.

External Specifications
Trailer Parts Catalog Flip Book Catalog
